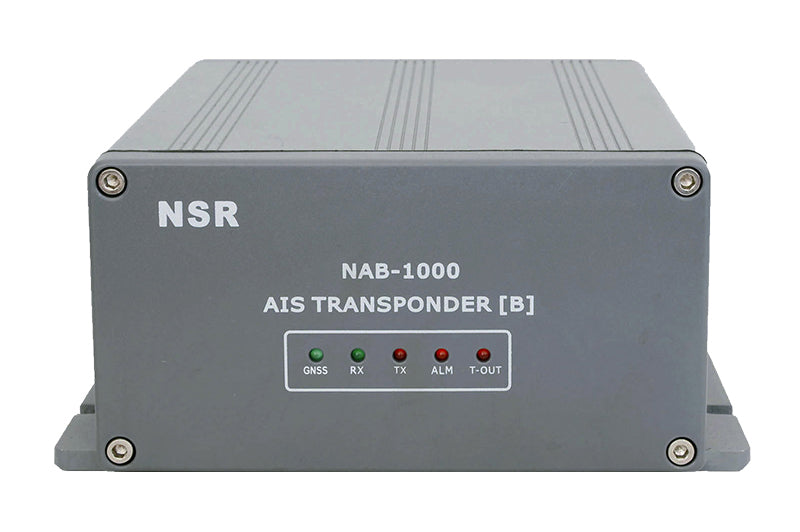

NAB-1000 AIS CLASS B
NAB-1000 AIS CLASS B
【FEATURES】
- Meet the latest IMO regulation and ITU standards, such as IEC 62287-1, ITU-R.M 1371-5.
- GPS、BDS、GLONASS positioning mode.
- Compatible with AIS AtoN, AIS SART, AIS MOB, AIS EPIRB.
- High stability and easy maintenance.
- Built-in isolated DC/DC with wide range input.
- Design for non-Solas vessels with CSTDMA technology.
- Can communicate with other AIS transponders, including shipborne Class A AIS,
Class B AIS, AtoN AIS station, AIS base stations.
- CCS type approval.
- RS type approval.
【SPECIFICATIONS】
| Frequency Range: | 156.025～162.025MHz |
| Default Channels: | AIS 1, AIS 2 |
| Band Width: | 25kHz |
| Output Power: | 2W |
| Communication Mode: | CSTDMA |
| Sensitivity: | Better than -110 dBm |
| Data Ports: | one RS232, one RS422 |
| Data Format/Baud Rate: | NMEA 0183, 38400bps |
| Ant Connectors: | 50Ω, TNC (GPS Ant), BNC(VHF Ant) |
| Power Source: | 24V DC (range 12～38V) |
| Size: | 81(H) x 174(W) x 160(D) mm |
| Weight: | 1.4 kg (transponder) |
| IP Grade: | IP22 (Transponder, MKD, Plotter), IP66 (Antenna) |
