NSR Marine

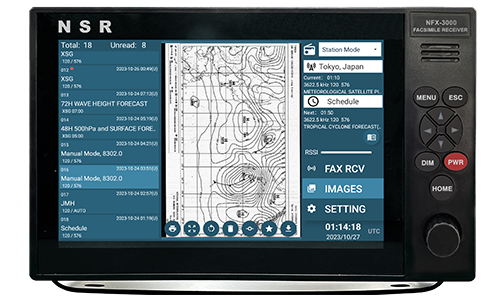

NFX-3000 WEATHER FAX
NFX-3000 WEATHER FAX
【FEATURES】
NSR’s new generation of WEATHER FAX:
- SDR (software defined radio) technology adopted.
- High receiving sensitivity with noise rejection.
- Large 10 inch color LCD, touch screen operation.
- Android O/S for easy operation.
- Large storage of up to 500 weather charts.
- Weather charts can be transferred to the computer via LAN.
- Manual Mode, Station Mode and Schedule Mode for various needs.
- Automatic operation with built-in schedule preset.
- Selected images/charts can be printed in three ways: on a printer directly connected, on a printer connected to the bridge networks and on a printer connected to a PC from USB stick, etc.
【SPECIFICATIONS】
|
OS: |
Android |
|
LCD Display: |
Touch screen operation |
|
LCD Size: |
10.1 inch |
|
LCD Resolution: |
1280×800 |
|
RAM: |
2GB |
|
Number of Channels: |
1000+ |
|
Frequency Range: |
2-25MHz |
|
RX Mode: |
F3C |
|
Interface: |
RS422, USB, LAN |
|
Scanning Speed: |
60, 90, 120, 180, 240 r.p.m., manual or automatic selection |
|
IOC: |
576, 288, manual or automatic selection |
|
Power Supply: |
DC 24V ( range 9 V ~ 36 V) |
|
Size: |
189.8 (H) × 321.3 (W) × 100.6 (D) mm (Display Unit) |
|
Weight: |
2.2kg (Display Unit) |
|
IP Grade: |
IP22: Display Unit, IP66: Antenna |
