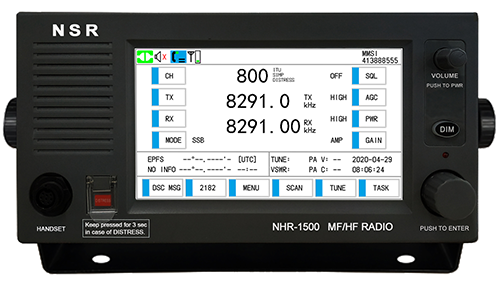

NHR-1500 MF/HF RADIO

【FEATURES】

- Capable of voice communication and DSC (digital selective calling) facilities as well.

- Conforming to Class A standard set for MF/HF DSC by ITU and IMO regulation.

- Can be part of onboard GMDSS package for vessels of A2, A3 and A4.

- Large 7-inch color display.

- Knob & touch screen operation.

- Marine communication handset.

- LAN network interface.

- SDR (Software Defined Radio) technology.

- Voice digitalized.

- Conforms to the regulations of ITU-R M.476-5, ITU-R M.492-6, ITU-R M.493-15, ITU-R M.541-10, IMO MSC.302 (87), IEC 61097-9, IEC 61097-3, IEC 60945, IEC 62923-1, IEC 62923-2 etc.

- CCS type approval.

- DNV type approval.

- RS type approval.

- VR type approval.



【SPECIFICATIONS】



TX Frequency:	1605.0-27500.0 kHz
RX Frequency:	300.0-29999.99 kHz
Working Channel:	400+ channels
Communication Mode:	Simplex/Semi-duplex
Emission Class:	J3E, H3E, A1A, F1B
TX Power:	150W pep
RX Sensitivity:	J3E：≤2.5 µV（1605.0 - 27500.0 kHz）   F1B：≤0.7 µV（1605.0 - 27500.0 kHz）   A1A：≤1.4 µV （1605.0 - 27500.0 kHz）
DSC frequencies (kHz):	2187.5, 4207.5, 6312.0, 8414.5, 12577.0, 16804.5
Control Display:	7-inch color display, touch screen
Interface:	LAN, BAM/INS (RS422), GNSS (RS422)
Antenna Impedance:	50 Ω
IP Grade:	IP22: Control unit, Transceiver, Handset  IP66: Antenna coupler
Operating Temperature:	-15° to 55°C (indoor parts)  -25° to 55°C (outdoor part)
Power Supply:	DC24V (range 18V ~ 29V)
