NSR Marine

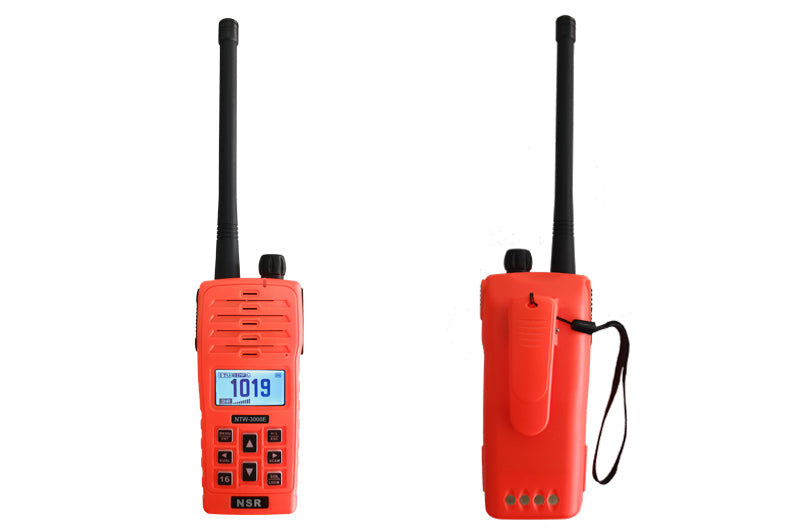

NTW-3000E Ex-Pro VHF
NTW-3000E Ex-Pro VHF
【FEATURES】
- Meet IMO MSC.338 (91) and IMO MSC.1/Circ.1460/Rev.4 regulation.
- Designed for onboard fire-fighter’s communication.
- 4-digital channels available.
- Ex-proof certificated.
【SPECIFICATIONS】
| Frequency & Channel | 1 |
| Frequency range: |
156.000～161.450 MHz (TX)
156.000～163.425 MHz (RX) |
| Channel Space: | 25kHz |
| Usable Channels: | Full ITU channels |
| Technical Features | 2 |
| Output Power: | HIGH 3.0W / LOW 1.0W |
| Communication Methods: | Simplex |
| Warming Up Time: | Within 5 Sec |
| Squelch Control: | √ |
| Dual Watch: | √ |
| Key Locking: | √ |
| Battery Save Mode: | √ |
| Beep Establishment: | √ |
| Location Indication: | √ |
| Operating Temperature: | -20°C~ + 60°C |
| Dimension: | 277.5 (H)×60.8 (W)×44.7 (D) mm |
| Weight: | 300g (Transceiver+Antenna+Battery) |
| Ex code: | Ex ib II B T3 Gb |
| Battery Capacity: | 1800mAh |
| Battery Voltage: | DC 7.4V |
【EQUIPMENT LIST】
|
STANDARD: |
||
|
Transceiver & Antenna |
NTW-3000E | 1 set |
|
Rechargeable Battery Pack |
NBT800CX | 1 pc |
|
Battery Charger |
NBT800CU | 1 pc |
| AC/DC Adaptor |
NBT200CUA |
1 pc |
|
Belt clip |
1 pc |
|
|
Wrist Rope |
1 pc |
|
|
OPTIONS: |
||
|
External PTT & Skull Mic/Headset |
1 set | |
